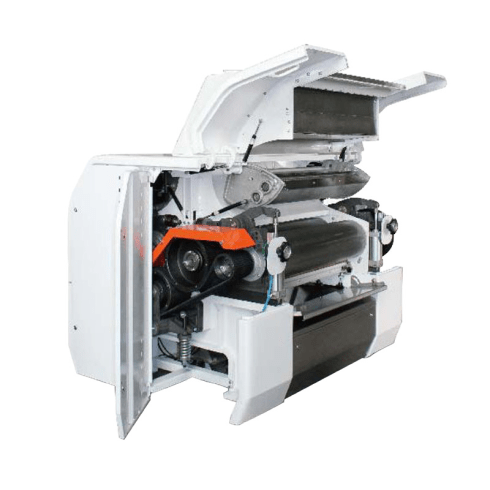

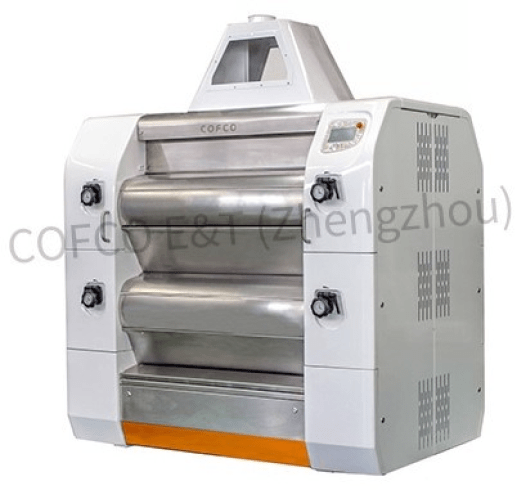

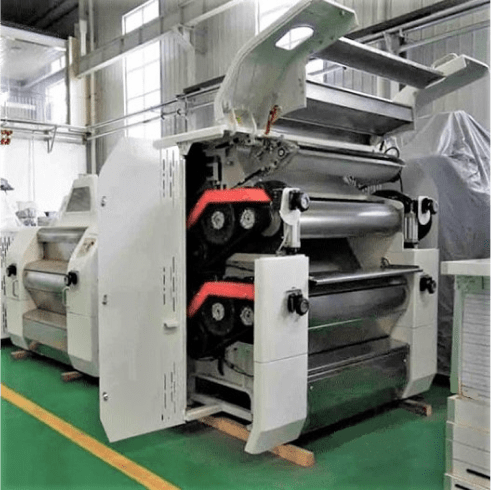

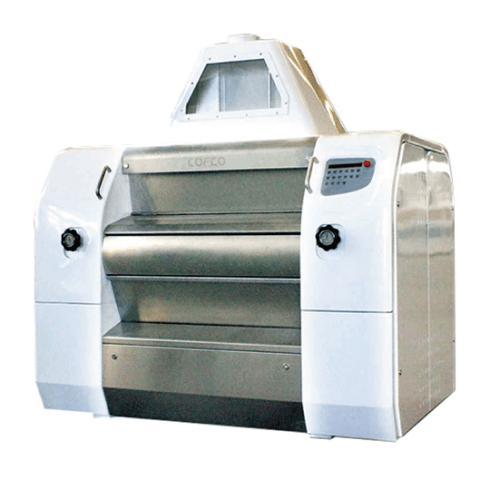

Application:  Roller Mill is the key machinery in the grain milling industry. We offer a series of roller mills to meet the needs of different sizes of milling plants and vary types of grains: wheat, oat, corn, beans, etc.

Features:

  • Food grade/stainless steel material contacts for high sanitation
  • Optimized interior structure for residue free
  • Modular style roll pack for easy and quick replacement of rolls
  • Variable frequency drive feeder improves grinding quality and saving energy

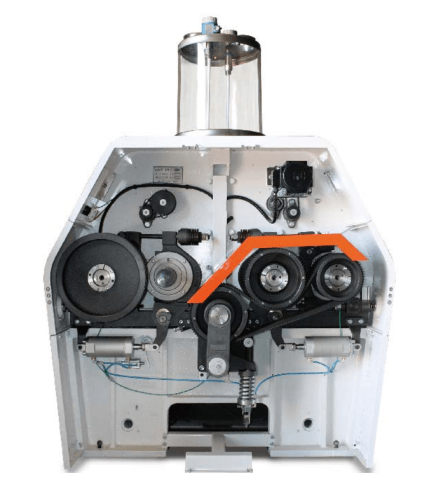

  • Synchronous belts transmission system for quiet operation and long service life
  • Accurate and liable roll gap adjustment assembly ensures precise grinding
  • Heavy duty steel frame structure
  • Powder coated finish for best quality and duration

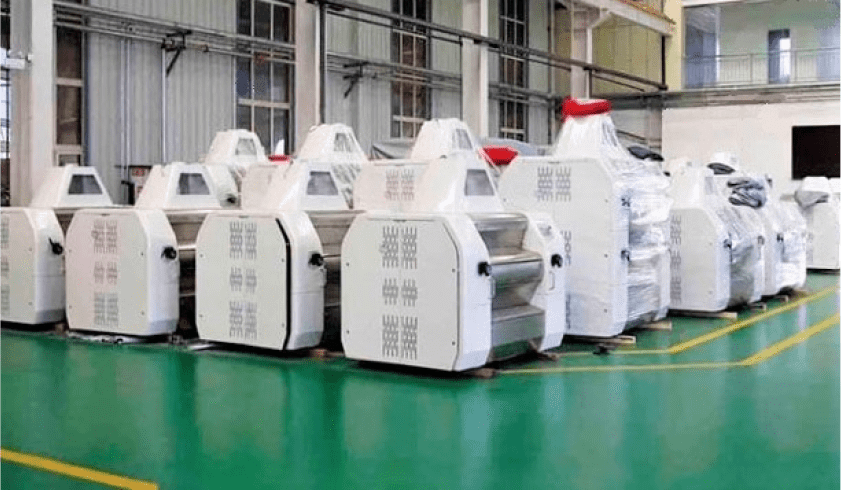

Item Specifications
Model
MMR 25/125
MMR 25/100
MMR 25/800
Roll Dia. × Length (mm)
φ250×1,250
φ250×1,000
φ250×800
Dimensions L × W × H (mm)
2,060×1,478×1,895
1,810×1,478×1,895
1,610×1,478×1,895
Net Weight (kg)
3,800
3,200
2,700

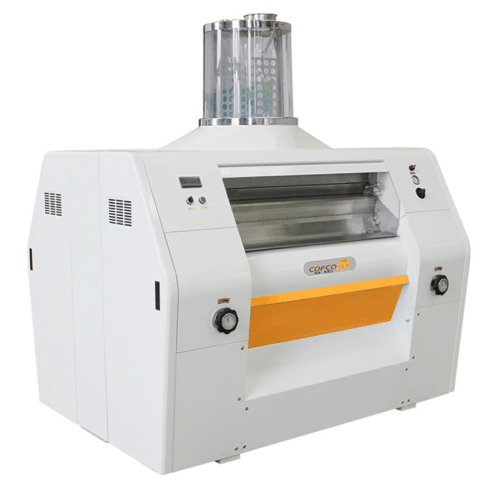

Item Specifications
Model
MMT 25/125
MMT 25/100
MMT 25/80
Roll Dia. × Length (mm)
φ250×1,250
φ250×1,000
φ250×800
Dimensions L × W × H (mm)
2060×1,422×1,997
1,810×1,422×1,997
1,610×1,422×1,997
Net Weight (kg)
4,000
3,300
3,000
Item Specifications
Model
MMT 30/125
MMT 30/100
MMT 30/80
Roll Dia. × Length (mm)
φ300×1,250
φ300×1,000
φ300×800
Dimensions L × W × H (mm)
2,060×1,572×1,997
1,810×1,572×1,997
1,610×1,572×1,997
Net Weight (kg)
4,500
4,000
3,700
