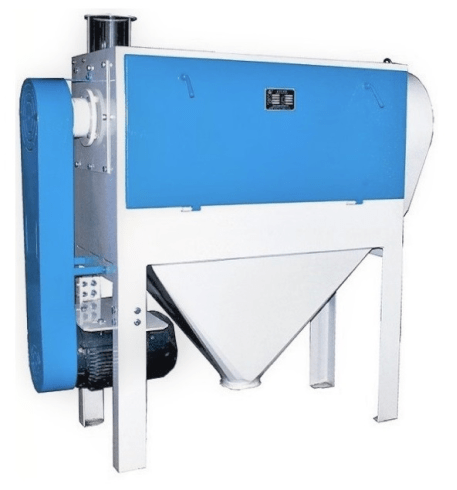

Application: Bran Finisher is used to extract and separate endosperm bonded to bran for increasing flour yield.
Features:
- Rotor equipped with angled blades for assisting material flow in the working chamber
- Dynamic balanced rotor to ensure smooth operation
- Prismatic stainless steel processing chamber for high efficiency outcome
- Optional vent and air intake ports for vary requirement

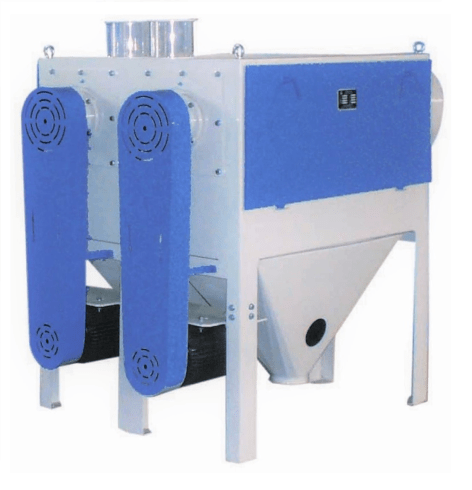

- Compact design and optional dual chambers setup for small footprint
- Powder coated finish for best quality and duration
| Model |
Working Chamber Dia. (mm) |
Working Chamber Length (mm) | Capacity (t/h) | Power (kW) | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|---|---|---|---|
FPDW 30×1 |
φ300 |
800 |
0.9-1.0 |
2.2 |
320 |
1,270×480×1,330 |
FPDW 30×2 |
φ300 |
800 |
1.8×2.0 |
2.2×2 |
640 |
1,270×960×1,330 |
FPDW 45×1 |
φ450 |
1,100 |
1.3-1.5 |
5.5 |
500 |
1,700×650×1,620 |
FPDW 45×2 |
φ450 |
1,100 |
2.6-3.0 |
5.5×2 |
1,000 |
1,700×1,300×1,620 |
