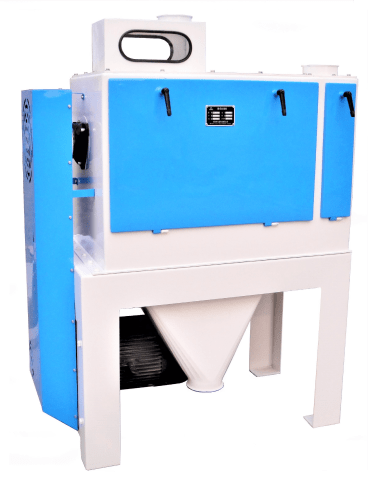

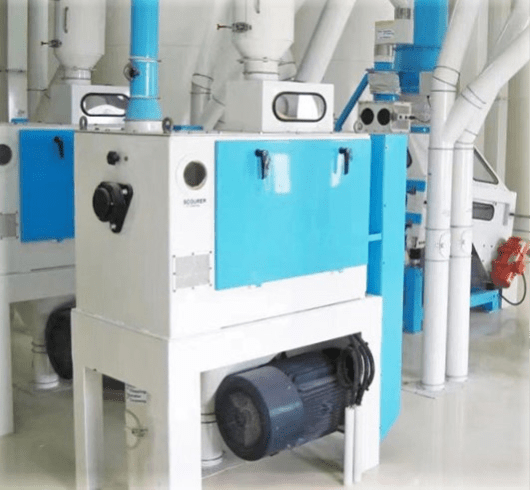

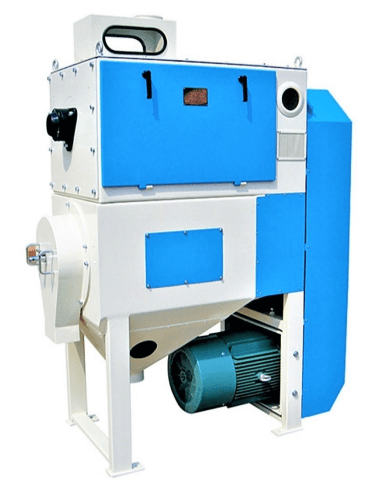

Application: Intensive Scourer is used to clean grain surface after screen and de-stone cleaning process.
Features:
- Patent rotor and working chamber (Patent: 201120473504.7)
- Exceptional anti-wear material contact components
- Extensive grain kernel polish and cleaning with low grain broken rate
- Patent bearing housing assembly (Patent: ZL201020207538.7) for precise shaft position and long bearing life time
- Dynamic balanced rotor to ensure smooth operation
- Adjustable flapper discharge for optimal processing outcome and throughput
- Air intake port for complementary air option
- Powder coated finish for best quality and duration
| Model | Screen Dia. (mm) | Screen Length (mm) | Capacity (t/h) | Power (kW) | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|---|---|---|---|
FDMWA 30×60 | φ300 | 600 | ≤12 | 7.5-15 | 760 | 1,220×600×1,615 |
FDMWA 45×80 | φ450 | 800 | 12-25 | 15-22 | 980 | 1,460×800×1,876 |
