Application: bagging station with automatic weighing, filling and sewing machine for milling products.
Features:
- A series models for a wide range of applications
- Dual auger feed mode for high accuracy
- Vertical pneumatic actuated bag compacting technology
- Integrated operation of weighing, bag filling, sewing and conveying
- Easy set up and user friendly
- World top brand load cells, electric and pneumatic components

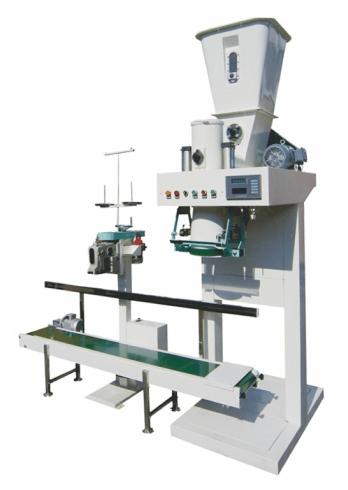

Single Station
| Model | Bag Size (kg/bag) | Capacity (bag/h) | Accuracy (%) | Power (kW) |
|---|---|---|---|---|
DCS-10 |
5-10 |
160 |
± 0.2 |
1.5+0.37+0.25 |
DCS-25 |
10-25 |
160 |
± 0.2 |
1.5+0.37+0.25 |
DCS-50 |
25-50 |
180-240 |
± 0.2 |
1.5+0.37+0.25 |

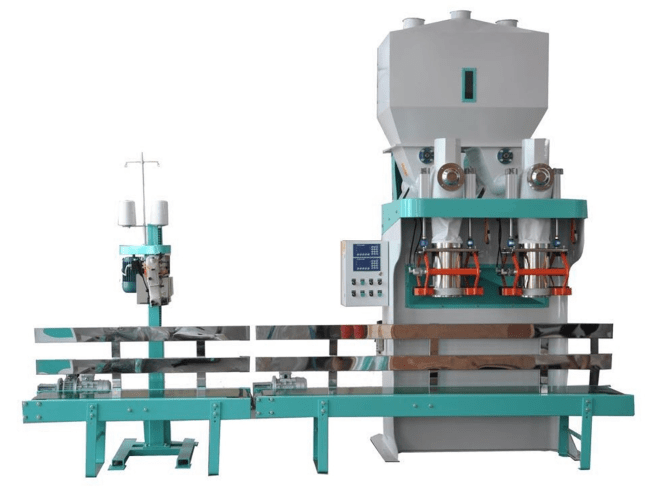

Dual Stations
| Model | Bag Size (kg/bag) | Capacity (bag/h) | Accuracy (%) | Power (kW) |
|---|---|---|---|---|
DCS-10/2 |
5-10 |
280-350 |
±0.2 |
1.5+0.37+0.25 |
DCS-25/2 |
10-25 |
280-350 |
±0.2 |
1.5+0.37+0.25 |
DCS-50/2 |
25-50 |
250-300 |
±0.2 |
1.5+0.37+0.25 |
