Application: high efficiency Compact Sifter is widely used in the grain milling industry for sifting and checking milling products.
Features:
- Single and Dual compartments models are available
- Enclosed compartment designs with excellent dust tight feature
- 6-12 Sieves stack arrangement
- Integrated vertical and horizontal sieve stack compressing and locking assembly
- Optimized rotating radius and speed
- Fibreglass rod suspension with stainless steel safety rope
- Small footprint and flexible applications
- Powder coated finish for best quality and duration

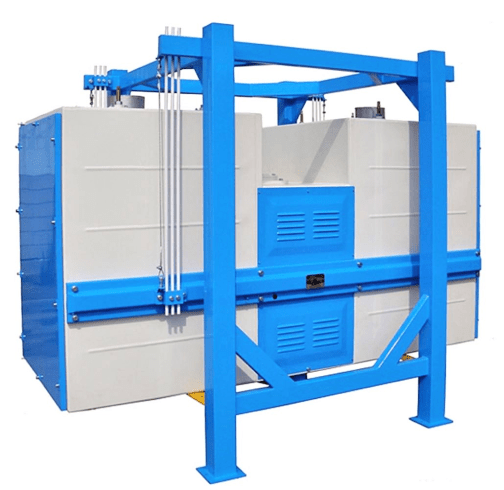

Dual Compartments Sifter Specifications
| Model | Net Sifting Area (m²) | Capacity (t/h) | Power (kW) | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|---|---|---|
FSFJ 2×10×63 | 4.2 | 2-2.5 | 1.1 | 550-580 | 1,680×1,270×1,500 |
FSFJ 2×10×70 | 6.2 | 3-3.5 | 1.1 | 650-670 | 1,840×1,350×1,760 |
FSFJ 2×10×83 | 8.5 | 5-10 | 1.5 | 730-1,000 | 2,386×1,678×2,250 |
FSFJ 2×10×100 | 13.5 | 8-14 | 2.2 | 1,200-1,600 | 2,856×1,811×2,250 |
FSFJB 2×10×83 | 11.5 | 8-12 | 1.5 | 900-1,000 | 2,386×1,678×2,250 |
FSFJB 2×10×100 | 17 | 10-16 | 2.2 | 1,400-1,800 | 2,856×1,811×2,250 |

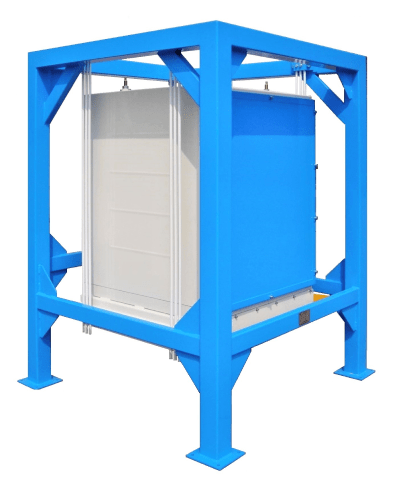

Single Compartment Sifter Specifications
| Model | Net Sifting Area (m²) | Capacity (t/h) | Power (kW) | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|---|---|---|
FSFJ 1×10×63 | 2.5 | 1-1.5 | 0.75 | 320 | 1,130×1,030×1,650 |
FSFJ 1×10×70 | 2.8 | 1.5-2 | 0.75 | 400 | 1,200×1,140×1,860 |
FSFJ 1×10×83 | 4.5 | 2-4 | 0.75 | 470 | 1,380×1,280×1,860 |
FSFJ 1×10×100 | 7 | 3-6 | 1.1 | 570 | 1,580×1,480×1,960 |
FSFJ 1×10×120 | 9.8 | 6-10 | 1.5 | 800 | 1,960×1,890×2,260 |
FSFJB 1×10×83 | 5.8 | 4-7 | 0.75 | 880 | 1,445×1,445×2,250 |
FSFJB 1×10×100 | 8.5 | 5-8 | 1.1 | 980 | 1,655×1,655×2,260 |
FSFJB 1×10×120 | 12 | 6.5-10 | 1.5 | 1,200 | 1,904×1,904×2,260 |
