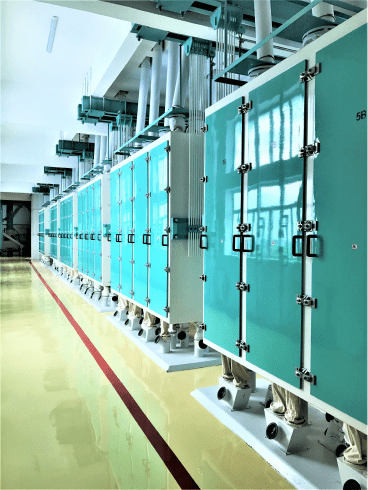

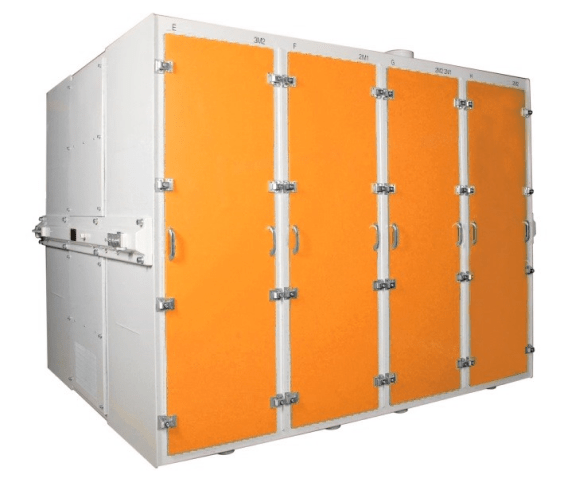

Application: High efficiency granular grading and sorting sifter is widely used in the grain milling industry.
Features:
- Modular design for a series models
- Optimized design ensures trouble free of framework fracture, excellent sifting compartment sealing and easy bearing maintenance
- Reliable screen frame vertical compressing and locking assembly
- Unique design for integration of main frame and partitions into a substantial structure
- Distinctively formulated high quality sheet metal work
- Patented driving assembly resolved oil leaking and increased bearing durability (Patent: ZL200820071160.5 and ZL201020207541.5)
- Powder coated finish for best quality and duration
| Plansifter Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Model |
Cabin Height
(mm) |
Min. Install Height
(mm) |
Power
(kW) |
Net Sifting Area
(m²) |
Weight
(kg) | |||||
640 |
740 |
640 |
740 |
640 |
740 |
640 |
740 |
640 |
740 | |
4×16 |
1,800 |
2,800 |
3 |
3 |
17.7 |
24.8 |
2,550 |
2,900 | ||
19.9 |
28.2 | |||||||||
22.1 |
30.1 | |||||||||
6×16 |
1,800 |
2,800 |
4 |
5.5 |
26.5 |
37.2 |
2,800 |
3,150 | ||
29.9 |
42.2 | |||||||||
33.2 |
45.1 | |||||||||
8×16 |
1,800 |
2,800 |
5.5 |
7.5 |
35.3 |
49.7 |
3,200 |
3,500 | ||
39.8 |
56.3 | |||||||||
44.3 |
60.2 | |||||||||
2×24 |
2,300 |
3,300 |
3 |
18.6 |
1,600 | |||||
4×24 |
2,300 |
3,300 |
3 |
5.5 |
26.5 |
37.2 |
2,900 |
3,700 | ||
29.9 |
42.2 | |||||||||
33.2 |
45.1 | |||||||||
6×24 |
2,300 |
3,300 |
4 |
7.5 |
39.7 |
55.9 |
3,550 |
4,550 | ||
44.8 |
63.4 | |||||||||
49.8 |
67.7 | |||||||||
8×24 |
2,300 |
3,300 |
7.5 |
11 |
53 |
74.5 |
5,200 |
6,000 | ||
59.7 |
84.5 | |||||||||
68.4 |
90.2 | |||||||||
10×24 |
2,300 |
3,300 |
15 |
18.5 |
66.3 |
93.1 |
5,600 |
6,600 | ||
74.6 |
106.6 | |||||||||
83 |
112.8 | |||||||||
4×28 |
2,470 |
3,540 |
4 |
7.5 |
30.9 |
32.3 |
3,350 |
3,950 | ||
34.8 |
49.3 | |||||||||
38.8 |
52.6 | |||||||||
6×28 |
2,470 |
3,540 |
5.5 |
7.5 |
46.4 |
65.2 |
4,100 |
4,900 | ||
52.2 |
73.9 | |||||||||
58.1 |
79 | |||||||||
8×28 |
2,470 |
3,540 |
11 |
15 |
61.8 |
86.9 |
5,600 |
6,500 | ||
69.7 |
98.6 | |||||||||
77.5 |
106.3 | |||||||||
10×28 |
2,470 |
3,540 |
15 |
18.5 |
77.3 |
108.6 |
6,000 |
7,000 | ||
87.1 |
123.3 | |||||||||
96.9 |
131.6 | |||||||||
