Application: Indent Cylinder Separator is used for seed grading process by length.

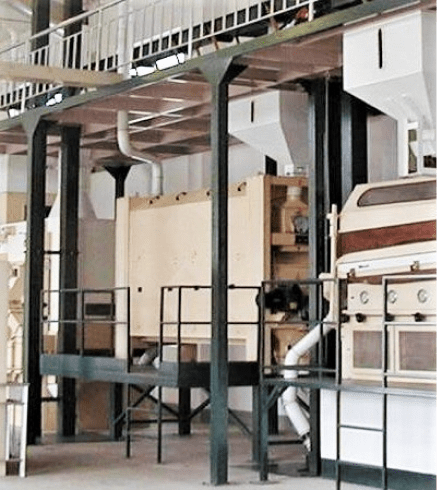

Indent cylinder separator integrates the functions of removing long and short foreign seeds from the product. It is usually used after the pre-cleaning machine or air screen cleaner.
It is suitable for many types of seeds: wheat, barley, oat, paddy, corn, sunflower, etc.
Capacity: 5TPH to 15TPH (200BPH to 600BPH) based on wheat with 3% impurities
Features:

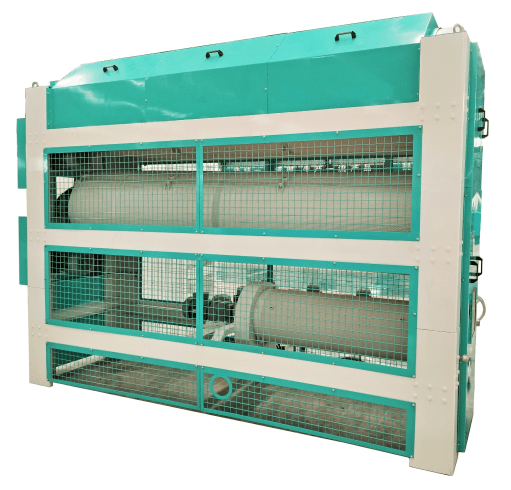

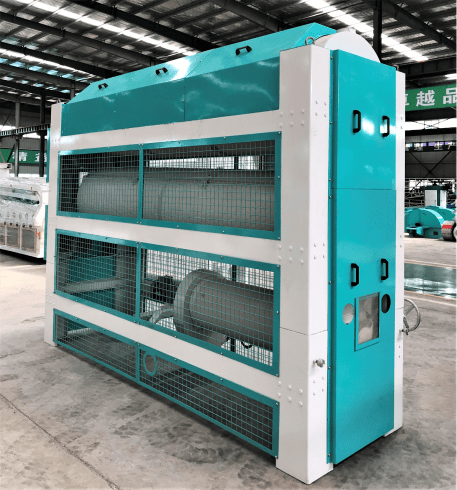

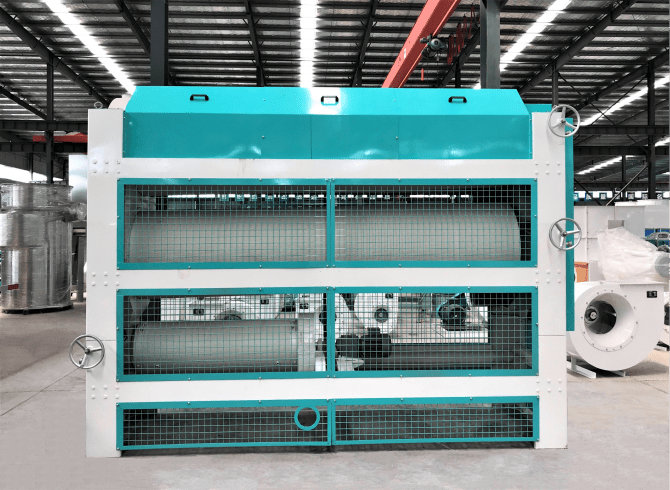

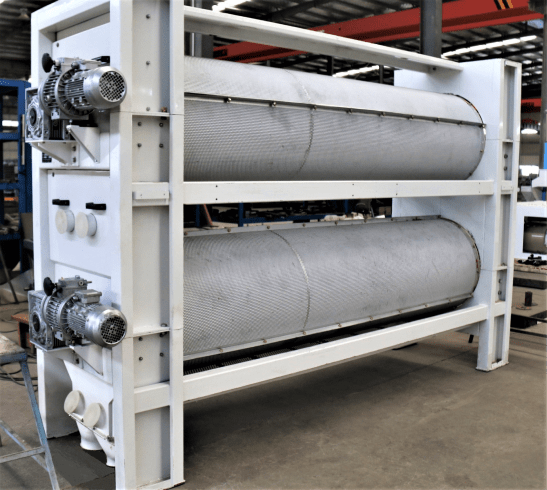

- Stacked dual cylinder design for small foot print
- Driven by individual motor, cylinders can be in series or parallel configuration
- Adjustable cylinder speed and flow rate for processing different products
- Heavy duty steel construction
- Full closed working chamber for clean operation

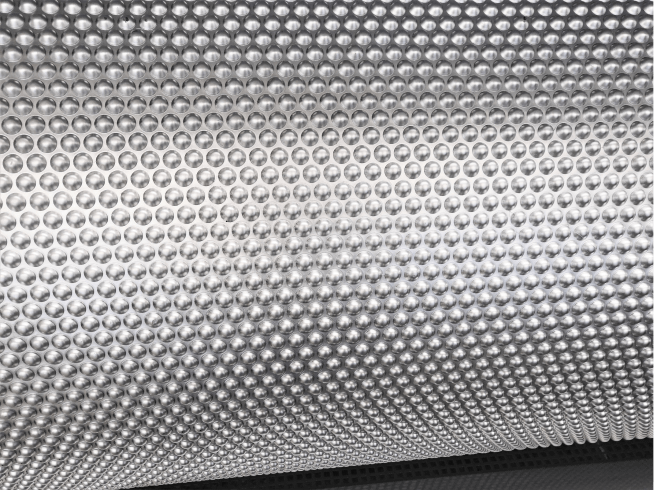

- Indented panel quick removal and gathering trough easy positioning
- Powder coated finish for best quality and duration

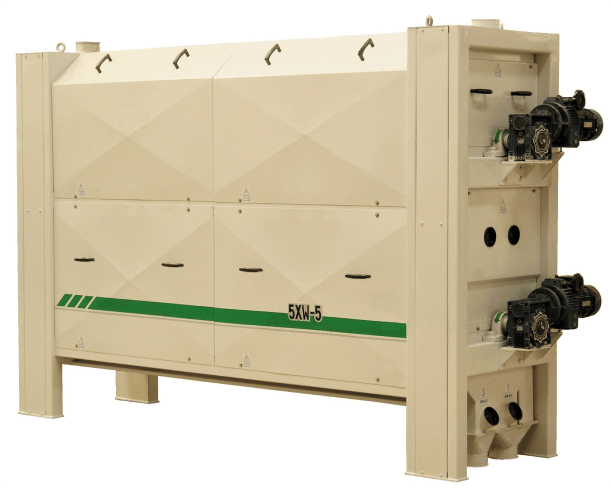

| Model | C5XW-5 | C5XW-10 | C5XW-15 | |
|---|---|---|---|---|
Rated Capacity (t/h) | 5 | 8~9 | 12~15 | |
Dimension L×W×H (mm) | 3,880×1,040×2,330 | 3,750×1,200×2,650 | 3,750×1,200×2,650 | |
Weight (kg) | 1,500 | 2,600 | 2,400 | |
Power (kW) | 1.5×2 | 5.9 | 5.5 | |
Motor Speed (rpm) | 1,400 | 1,400 | 1,400 | |
Cylinder | Size Dia.×L (mm) | 2 x Φ700×2,700 | 2 x Φ710×3,000 2 x Φ420×1,300 | 2 x Φ710×3,000 2 x Φ420×1,300 |
Configuration | 2 cylinders in series or parallel | 2 long cylinders in series, 2 short ones re-checking | 2 long cylinders in parallel, 1 short one re-checking | |
Speed (rpm) | 38~48 (adjustable) | |||
Product Trough (°) | 0~360 | |||
