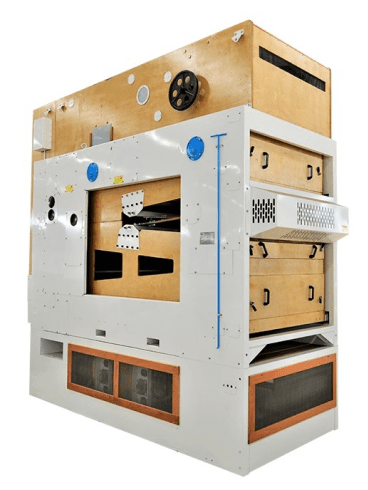

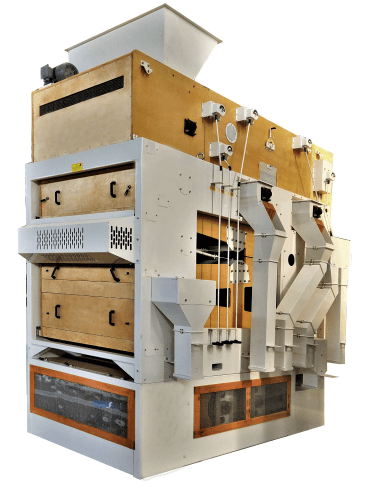

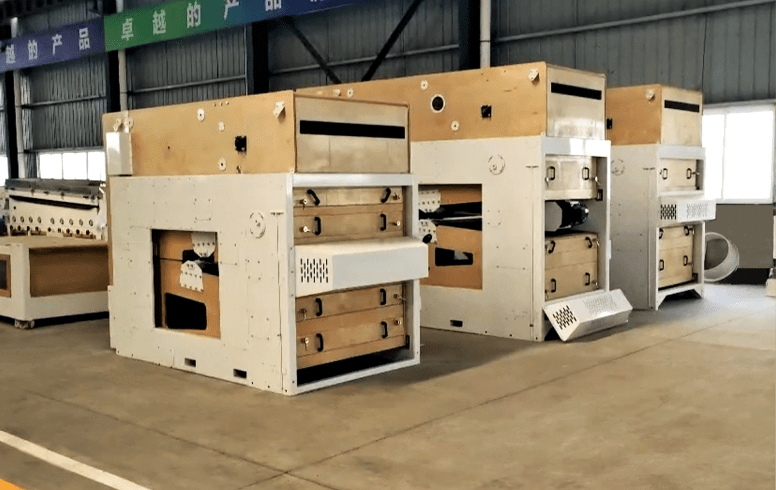

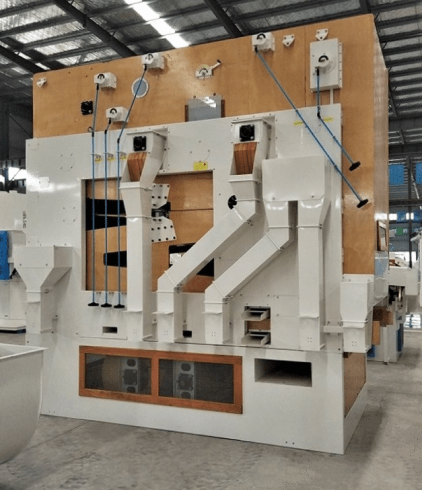

Application: Air Screeners are for seed precise separation/grading and cleaning. Purify your product by removing the coarse/chaff, fine, light and dust impurities, blighted and broken seeds according to sizes and aerodynamic characteristics of the materials.
These series air screeners are suitable for all types of seeds: cereals, pulses, oilseeds, spices, vegetable seeds, grass seeds, flower seeds and forestry seeds.
Capacity: 5TPH to 12TPH (200BPH to 480BPH) based on wheat
Features:
- Excellent cleaning/grading outcome are result from variable screen configuration, pre and after clean aspiration systems
- Enclosed design for clean operation environment
- Easy interchangeable cleaning screens for flexible processing
- Upper and lower screen decks are self balanced for smooth running and no vibration transferring to floor
- Blower systems at top and bottom for twice removing of light impurities
- Screen frames, rubber ball trays and feeder are made of high quality wood for excellent sealing, vibration absorption and low noise
- Wide adjustment range realizes fine cleaning and grading process
- Safety guard equipped for every moving component to ensure safe operation
- Heavy duty steel construction and left or right discharge system based on site conditions
- Powder coated finish for best quality and duration
| Model | C5X-5 | C5X-12 |
|---|---|---|
Dimensions L×W×H (mm) | 3,200×1,920×3,600 | 3,790×1,940×4,060 |
Weight (kg) | 3,250 | 3,600 |
Capacity Based on Wheat (t/h) | 5 | 12 |
Air Consumption (m³/h) | 8,200 | 12,520 |
Power | ||
Top Blower Optional (kW) | 7.5 | 11 |
Sieve Vibration Gear Motor (kW) | (2.2) | (2.2) |
Bottom Blower Motor VFD (kW) | (3.0) | (3.0) |
Feeder Motor VFD (kW) | (1.5) | (1.5) |
Total Power (kW) | 6.7 | 6.7 |
Screen | ||
Screen Type | Perforated Screen | |
Screen Dimension L×W (mm) | 800×1,250 | |
Vibration Frequency (per min) | 300 (80~400) | |
Vibration Amplitude (mm) | 30 | |
Layers and Number of Screen | 4 layers, 7 sections | 5 layers, 15 sections |
1st layer | 1 section, round hole | 3 sections, slot hole |
2nd layer | 2 sections, slot hole | 3 sections, slot hole |
3rd layer | 2 sections, slot hole | 3 sections, slot hole |
4th layer | 2 sections, slot hole | 3 sections, slot hole |
5th layer | n/a | 3 sections, slot hole |
