Application: Gravity Separators are for seed precise grading and cleaning by removing blighted, insect damaged, moldy, germinated seeds and impurities.

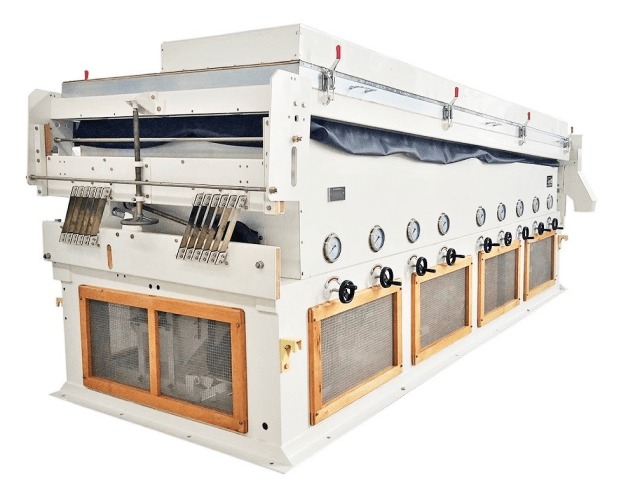

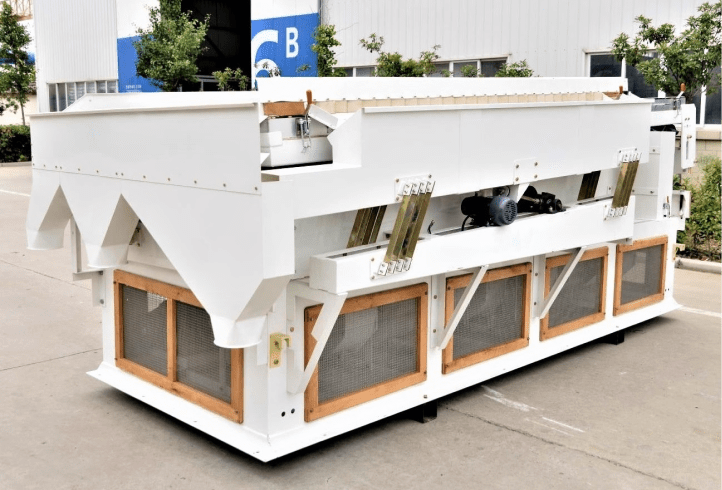

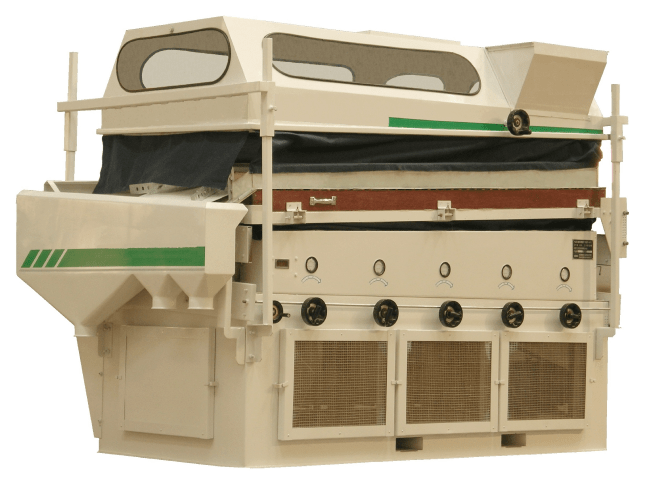

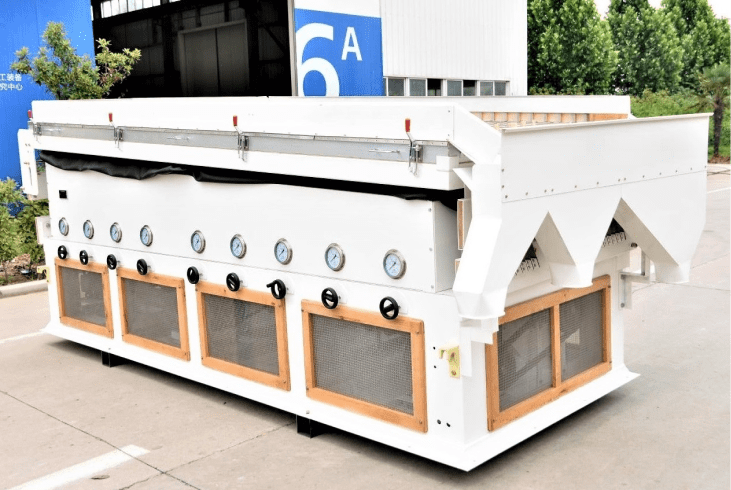

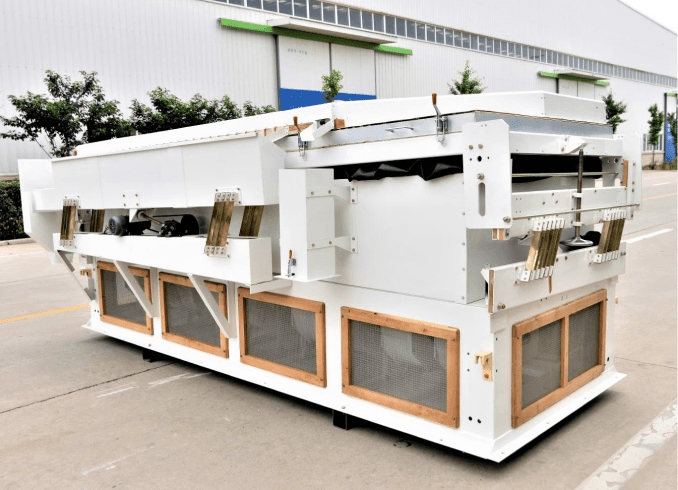

Gravity separator, also known as gravity table/gravity grader/density separator, is the key grading machines for seed already treated by air screener and indented cylinders.
These series gravity separators are suitable for all types of seeds: cereals, pulses, oilseeds, spices, vegetable seeds, grass seeds, flower seeds and forestry seeds.
Capacity: 3TPH to 15TPH (120BPH to 600BPH) based on wheat
Features:
- Optimal grading effect relies on the precise adjustment of feeding rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume
- Designed for simple operation, long service life
- Heavy duty steel construction, low vibration to floor and low noise
- Rectangular deck for greater capacity and accuracy
- Dynamically balanced blowers with individual air controller for precise air flow
- Cellular vertical air distribution device under the deck makes the air lifting evenly
- Steel wire square woven mesh screen ensures air passing through no dead band
- Eccentrics are counter balanced giving smooth oscillation action to the deck
- Variable feed speed, deck inclination, vibration speed and air volume in a wide range by individual control unit
- Safe guards to all moving components ensure the safe operation.
- Powder coated finish for best quality and duration
| Model | C5XZ-3 | C5XZ-5 | C5XZ-10 | C5XZ-15 |
|---|---|---|---|---|
Dimension LxWxH (mm) |
2,050×1,350×1,200 |
3,840×2,110×1,710 |
4,300×2,300×2,500 |
5,100×2,300×2,700 |
Total Weight (kg) |
1,000 |
1,400 |
2,300 |
3,500 |
Rated Capacity (t/h) |
3 |
5 |
10 |
15 |
Total Power (kW) |
7.45 |
13.35 |
20.7 |
30.3 |
Amplitude (mm) |
7 |
7 |
7 |
7 |
Tilt Angle (mm) |
30 |
30 |
30 |
30 |
Speed (rpm) |
300~800 |
300~800 |
300~800 |
300~800 |
Screen area (m²) |
2.48 |
3.66 |
5.32 |
8.36 |
Selecting Rate (%) |
≥98.5 |
≥98.5 |
≥98.5 |
≥98.5 |
Removal Rate – Light (%) |
≥99 |
≥99 |
≥99 |
≥99 |
Removal Rate – Heavy (%) |
≥95 |
≥95 |
≥95 |
≥95 |
