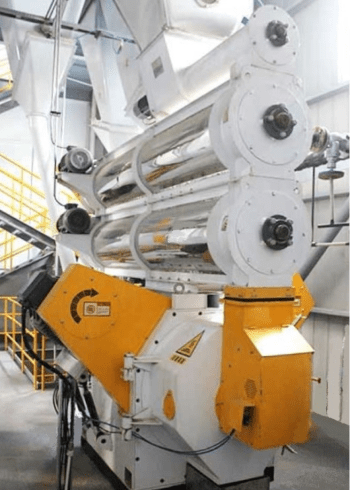

Application: key machinery in pellet feed production for poultry, hog, ruminant and aquatic farming.
Capacity: 0.5TPH to 15TPH (20BPH to 600BPH)
Features:

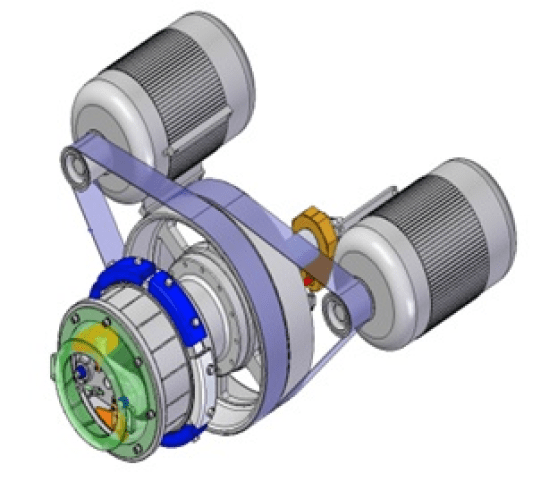

- Flexible dual motor triangle belt driving system for smooth operation with low noise, longer bearing life time and no gearbox lubrication & oil leakage
- Dual motor drive system makes starting current only half of gearbox driving system
- Easy speed adjustment by changing pulley size

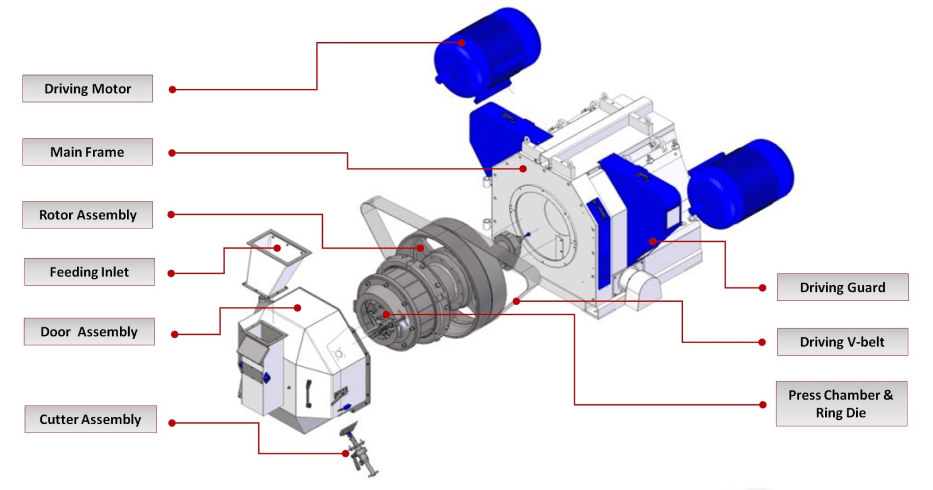

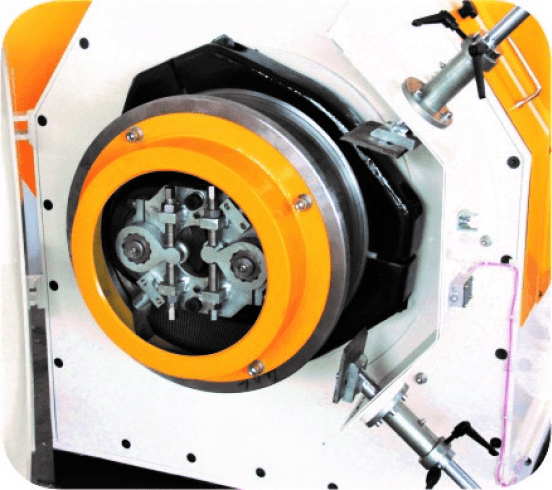

- Roller base blocks and the main shaft in the pelletizing chamber are forged into one heavy duty structure for life time high efficiency operation
- Heavy duty steel construction
| Model | Die ID (mm) | Power (kW) | Capacity (t/h) | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|---|---|---|
SZLH 250 |
250 |
11×2 |
0.4-1.5 |
905 |
1,152×1,145×1,000 |
SZLH 350 |
350 |
30×2 |
3.5-5 |
1,735 |
1,573×1,629×1,166 |
SZLH 420 |
420 |
55×2 |
3-12 |
3,655 |
1,983×2,258×1,592 |
SZLH 520 |
520 |
75×2 |
12-15 |
4,440 |
2,053×2,326×1,687 |
