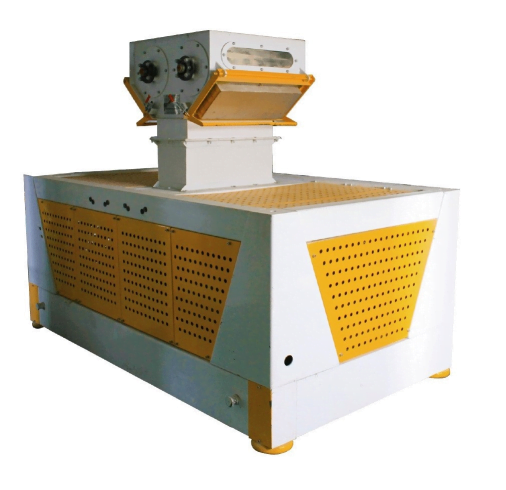

Application: efficient grain crusher for feed processing.
The innovative design and technology introduced a revolutionary grain crushing operation in the feed processing industry for its remarkable performance in energy saving, simplified machine operation and clean work environment. The application of these one-of-the-kind roller mills enable feed producers to cut production cost dramatically.
Capacity: grain 3TPH to 40TPH (120BPH to 1,600BPH)
Features:
- Up to 70% energy saving in crushing process
- No need to change roll gap for crushing mixed grains
- Cold cut, less material heating
- Low noise, less than 95dBa
- Compact design for small foot print
- Bearing temperature monitoring
- Easy access grind samples
| Model | Capacity (t/h) | Power (kW) | Speed (rpm) | Weight (kg) | Dimensions LxWxH (mm) |
|---|---|---|---|---|---|
FSDD 22x30 | 5 | 7.5x2 | 2,200-2,500 | 1,500 | 2,340x1,035x1,200 |
7 | 11x2 | 2,200-2,500 | 1,800 | ||
FSDD 22x48 | 13 | 15x2 | 2,200-2,500 | 2,200 | 2,340x1,215x1,200 |
20 | 22x2 | 2,200-2,500 | 2,500 | ||
FSDD 30x60 | 27 | 30x2 | 2,200-2,500 | 3,500 | 2,715x1,518x1,230 |
40 | 45x2 | 2,200-2,500 | 3,800 |
