Application: popular grain crusher for feed processing.

Capacity: grain 3TPH to 13TPH  (120BPH to 550BPH)

Features:

  • Durable and stable performance

    • Widened crushing area with optimized hammer arrangement result in remarkable performance for micro grinding.
    • Reversible rotor for longer hammer service life
    • Dynamic balanced rotor guarantees low vibration and low noise during operation



  • User friendly operation

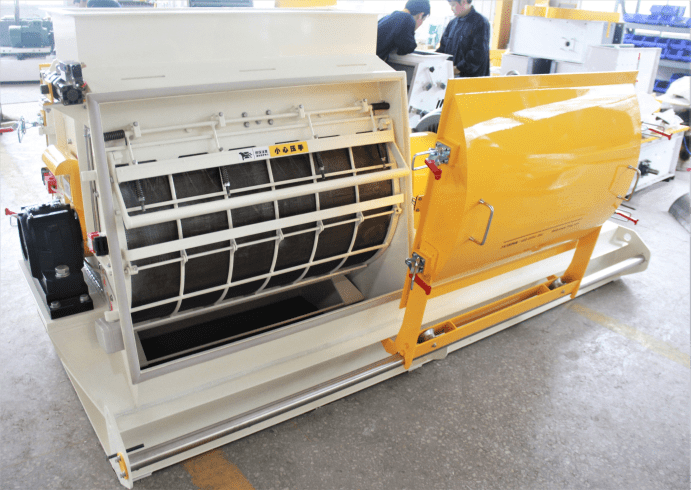

    • Removable door integrated with screen locking structure for easy operation and maintenance
    • Safety interlocking device for safe operation



  • High output and low energy consumption

    • Unique teardrop-shaped working chamber combined with optimized secondary crushing, the output increases by 25% compared to traditional models
    • Patented shaft ventilation system increases output by more than 25% for fine size products
Model Capacity (t/h) Power (kW) Hammer Screen Hole (mm) Weight (kg) Dimensions LxWxH (mm)
SFSP 56x30
3-4
18.5/22
18
φ3.0
580
1,435x849x938
SFSP 56x40
5-6
30/37
22
φ3.0
750
1,637x872x991
SFSP 56x60
6-10
45/55/75
34
φ3.0
1130
2,057x784x1,174
SFSP 66x80
6-8
90
96
φ1.0
2450
2,562x1,158x1,356
7-9.5
110
SFSP 66x100
8-11
132
120
φ1.0
2590
2,808x1,158x1,356
11-12
160
12-13
200
