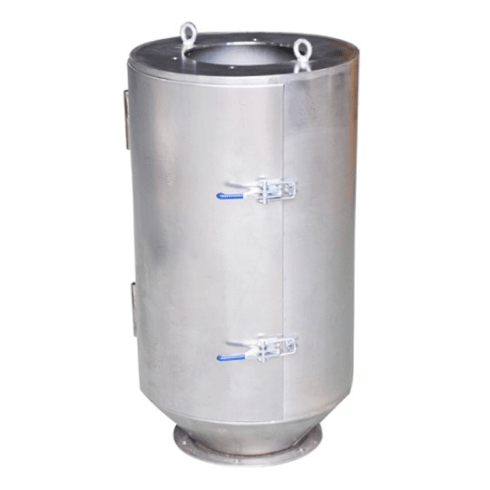

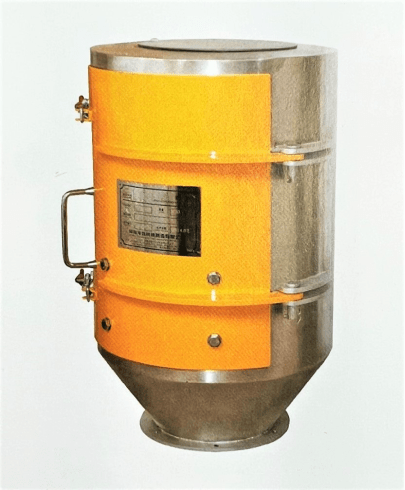

Application: installed in gravity spouting to separate ferrous objects from the grain stream.
Capacity: 10TPH to 75TPH (400BPH to 3,000BPH)
Features:
- A series of models for a wide range of applications
- Inlet/outlet diameter from 150mm to 400mm (6” to 16”)
- Magnet field strength ≥3000GS
- Stainless steel housing
- Hinged magnetic core for easy clean out
| Model | Capacity (t/h) R=0.5 | Capacity (t/h) R=0.75 | Inlet/Outlet (mm) | Weight (kg) | Magnet field Strength (GS) | Height (mm) |
|---|---|---|---|---|---|---|
CTCXT 15 |
10 |
15 |
φ150 |
55 |
≥3,000 |
600 |
CTCXT 20 |
20 |
30 |
φ200 |
80 |
600 | |
CTCXT 25 |
35 |
50 |
φ250 |
120 |
600 | |
CTCXT 30 |
45 |
70 |
φ300 |
170 |
720 | |
CTCXT 40 |
65 |
75 |
φ400 |
225 |
720 |
