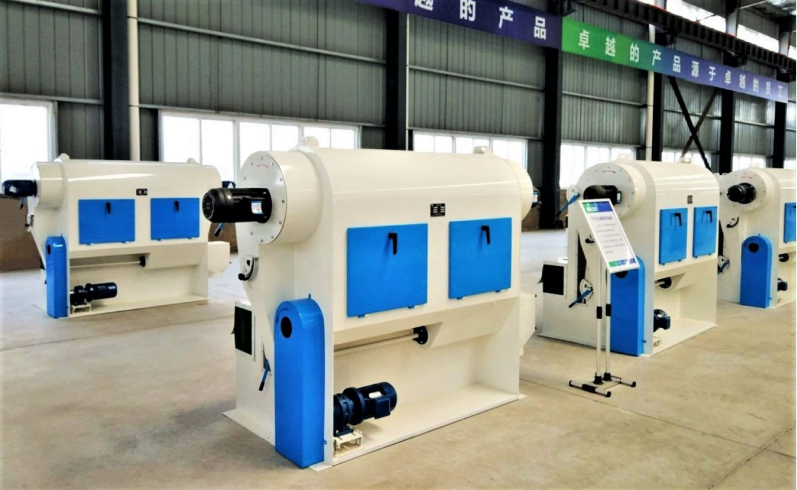

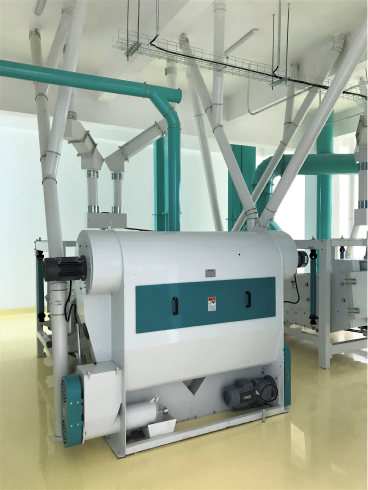

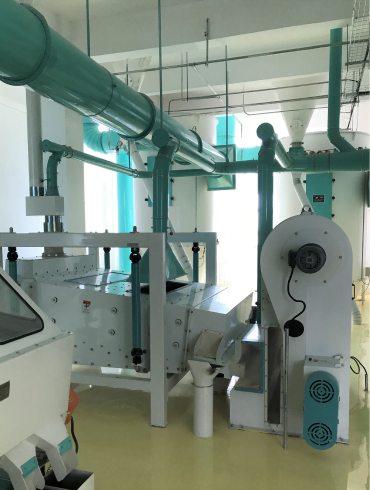

Application: Air Recycling Aspirator is used for removing light impurities and dust in grain cleaning process. It can be integrated with a screener or operated as a standalone aspirator.
Capacity: 5TPH to 120TPH (200BPH to 4,800BPH).
Features:
- Self contained blower and air recycling system
- Patent air tight assembly for impurity discharge (Patent: ZL200920091084.9)
- Adjustable air speed for optimized operation
- Small footprint
| Model | Capacity (t/h) Pre-cleaning | Capacity (t/h) Cleaning | Power (kW) | Dimensions L×W×H (mm) |
|---|---|---|---|---|
TFXH 60 | 40 | 5 | 2.2 + 0.75 | 1,240 × 1,005 × 1,745 |
TFXH 80 | 50 | 12 | 2.2 + 0.75 | 1,440 × 1,005 × 1,745 |
TFXH 100 | 65 | 16 | 2.2 + 0.75 | 1,640 × 1,005 × 1,745 |
TFXH 125 | 83 | 20 | 2.2 + 1.1 | 2,300 × 1,005 × 1,745 |
TFXH 150 | 100 | 24 | 2.2 × 2 + 1.5 | 2,550 × 1,005 × 1,745 |
TFXH 180 | 105 | 28 | 2.2 × 2 + 2.2 | 2,850 × 1,005 × 1,745 |
TFXH 200 | 120 | 32 | 2.2 × 2 + 2.2 | 2,870 × 1,005 × 1,745 |
