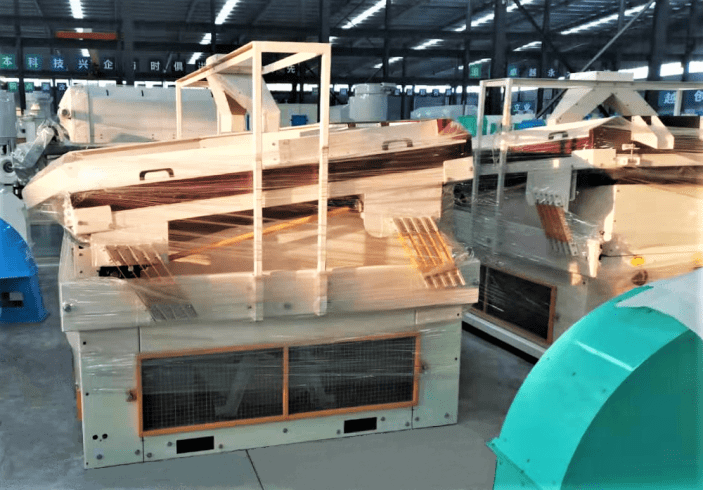

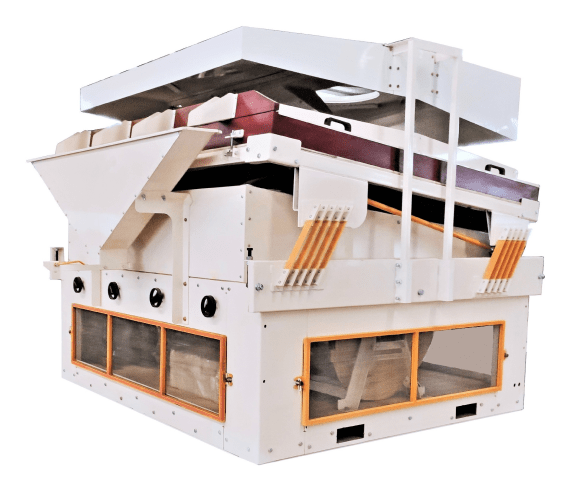

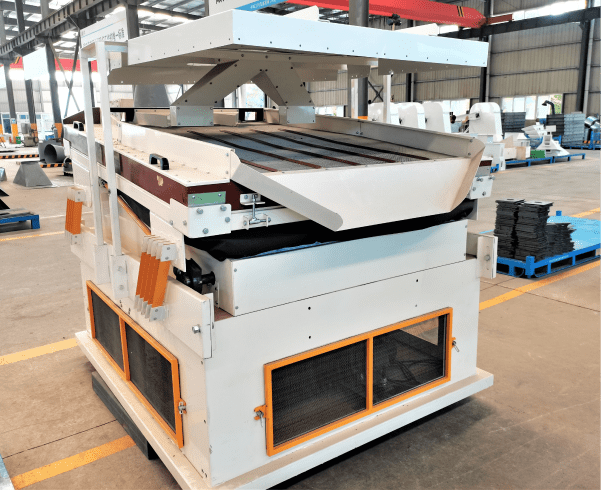

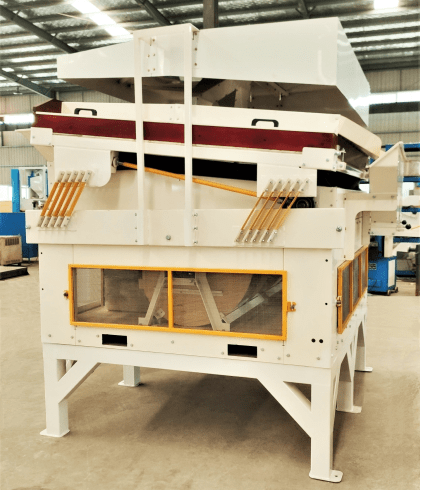

Destoners - Pressure Style

Application: High capacity Destoner is widely used for removing grain alike size stone and other heavier impurities from grains.

Features:

  • Modular design for a series models
  • Self-contained blower system
  • User friendly air and deck adjustment elements
  • Easily observe and access to the deck surface
  • Deck eccentric drive with Variable Frequency Drive (VFD) control
  • Heavy duty steel construction
Model Capacity (t/h) Deck Size (cm) Power (kW) Weight (kg) Dimensions L×W×H (mm)
C5QS-5
4-6
150x152
7
860
1,800×1,630×1,600
C5QS-8
8-10
180x175
9
1,140
2,600×1,900×1,850
C5QS-10
‍15-20
180x225
12.5
1,360
2,600×2,340×1,850
C5QS-20
‍20-30
180x265
12.5
1,540
2,600×2,800×1,850
