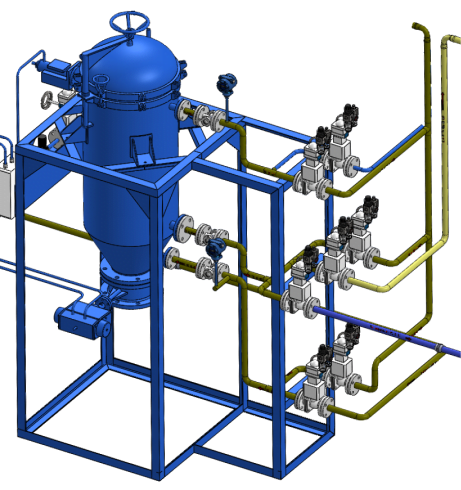

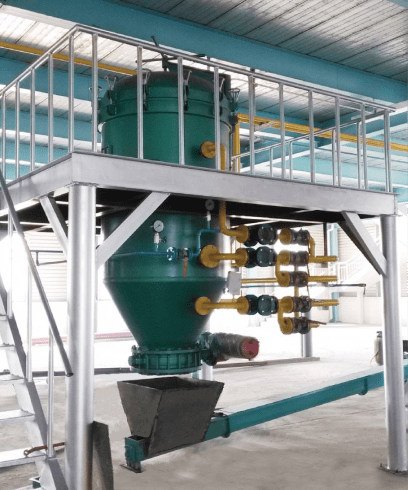

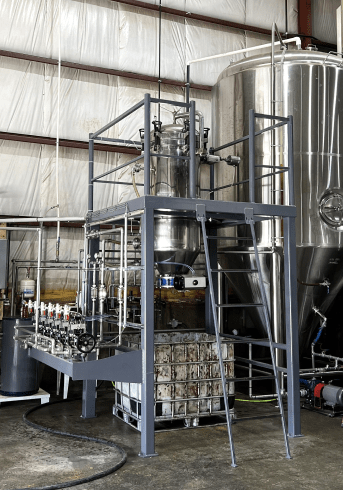

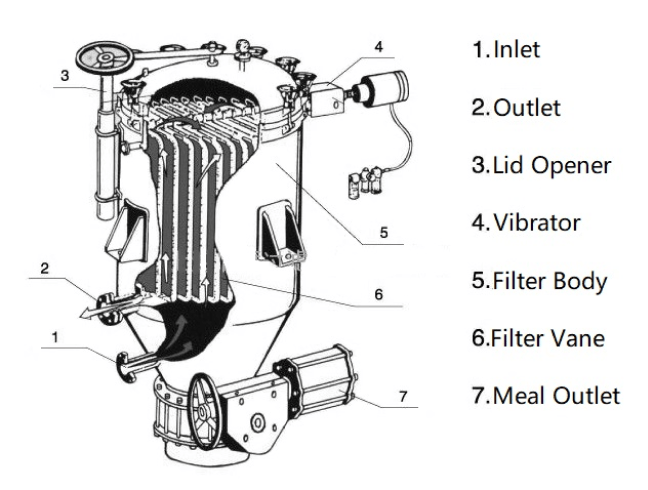

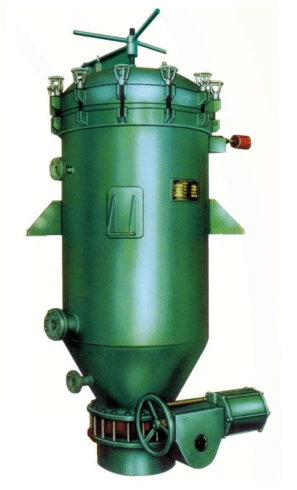

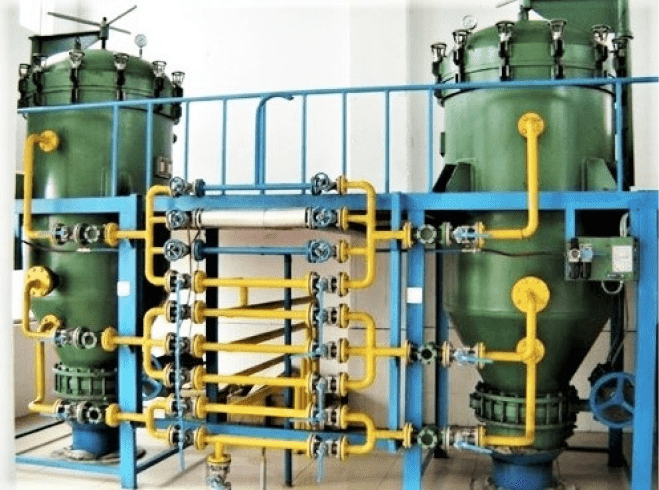

Application: The vertical vane filter is for crude oil filtering process with automatic filter cake discharge feature. Automated PLC control and manual operation options are available.
This series filters are suitable for vary types of crude oils: canola, soybean, sunflower, caster, etc.
Capacity (single filter): Crude oil 0.5TPH to 6TPH
Features:
- Compact design saves floor space
- Reusable stainless steel filter vanes greatly increases output and reduces operation cost
- Fully enclosed operation, no material spill for clean working environment
- Vibration aided filter cake discharge assembly minimized labour intensity
- Optional fully automated PLC control for continuous operation
- Optional stainless steel/food grade oil contact construction
| Model | CNYB-4 | CNYB-7 | CNYB-10 | CNYB-12 | CNYB-15 | CNYB-20 |
|---|---|---|---|---|---|---|
Filtration Area (m²) |
4 |
7 |
10 |
12 |
15 |
20 |
Capacity (t/h) |
0.5-1.2 |
1-1.8 |
1.6-3 |
2-4 |
3-5 |
4-6 |
Max. Working Pressure (Mpa) |
0.45 (65psi) | |||||
Working Temperature (°C) |
≤150 (300°F) | |||||
Compress Air Pressure (Mpa) |
0.40-0.60 (58-87psi) | |||||
Residual Oil in Dried Cake (%) |
≤20 | |||||
Weight (kg) |
400 |
600 |
900 |
1,100 |
1,300 |
1,700 |
