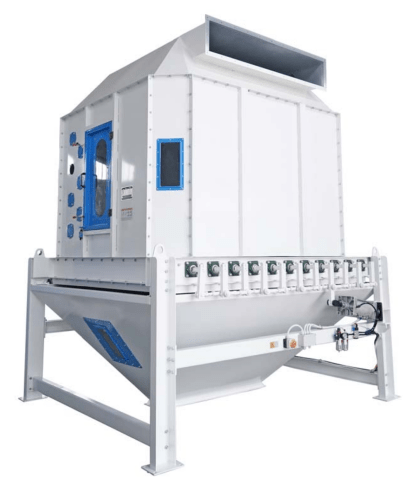

Application: The counter flow oil meal cooler is for cooling down the oil meal from the press for further process and storage. Cooled oil meal temperature at the cooler discharge is no higher than 10°C above ambient.

Capacity:  Oil meal 2TPH to 6TPH

Features:

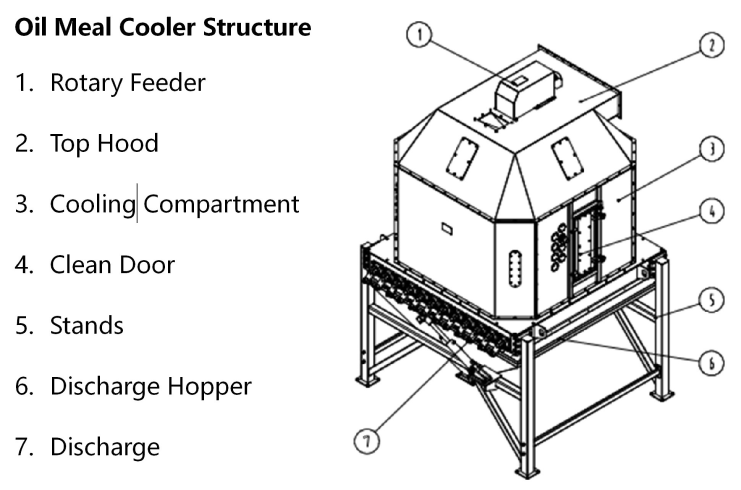

  • Consists of cooling hopper, rotary feeder, pneumatic discharge, air and dust collecting system, level and temperature sensors
  • Octagon cooling hopper for uniform cooling process. No material hanging and dead corners
  • Cooled oil meal temperature at the cooler discharge is no higher than 10°C above ambient.
  • Larger cooling air intake for energy saving up to 10%
Model Power (kW) Capacity (t/h) Temp. After Cooling Cooling Hopper (mm)
CLQ1414
11+1.5+1.1+1.1
2
≤RT+10°C
1,400x1,400
CLQ1919
15+1.5+1.1+1.1
4
≤RT+10°C
1,900x1,900
CLQ2424
22+2.2+1.1+1.1
6
≤RT+10°C
2,400x2,400
