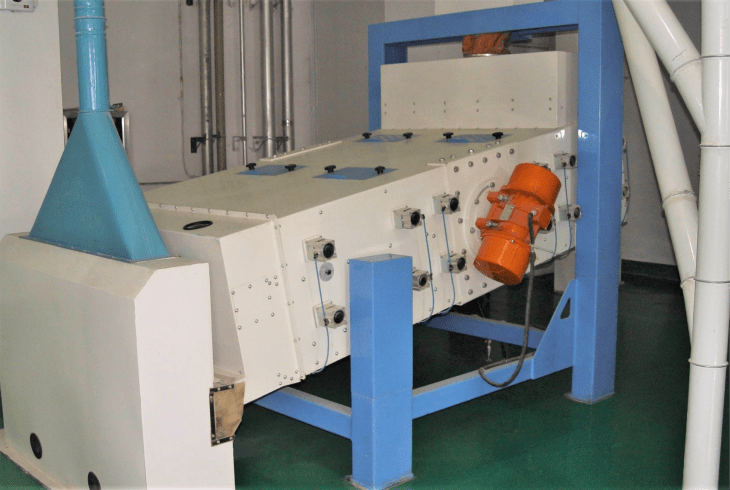

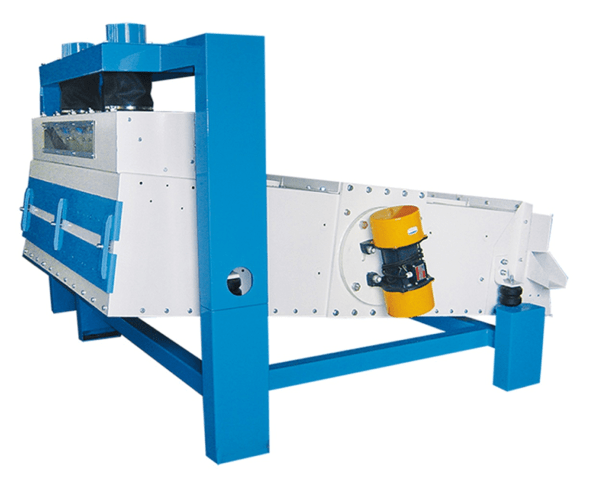

Application: Vibrate Screener is widely used for coarse scalping and precise separation in grain storage and processing systems.

Capacity: 2TPH to 120TPH (80BPH to 4,800BPH)

Features:

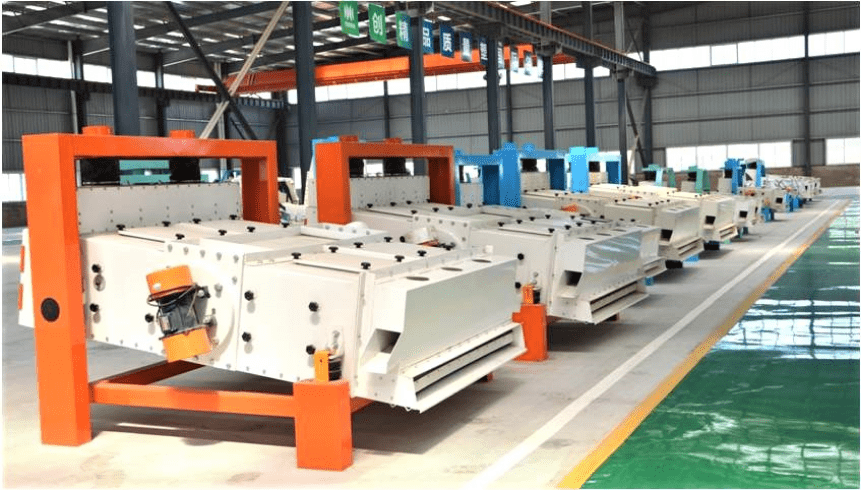

  • Modular design with a series models
  • Enclosed design for clean environment
  • Heavy duty steel construction
  • Grain feeder ensures grain spread evenly on the screen for high efficiency
  • Fast screen change, patent “Loose free” screen locking assembly (Patent: 201020207537.2)
  • Screen self cleaning rubber balls
  • Adjustable screen deck slope for different applications: 6°, 8°, 10°, 12°, 15°
  • Screen vibrating strike is adjustable for best processing outcome
  • Dual vibrate motor driving system with low power consumption, low noise, less maintenance
  • Durable and maintenance free rubber spring supports
  • Integrated aspirators are available

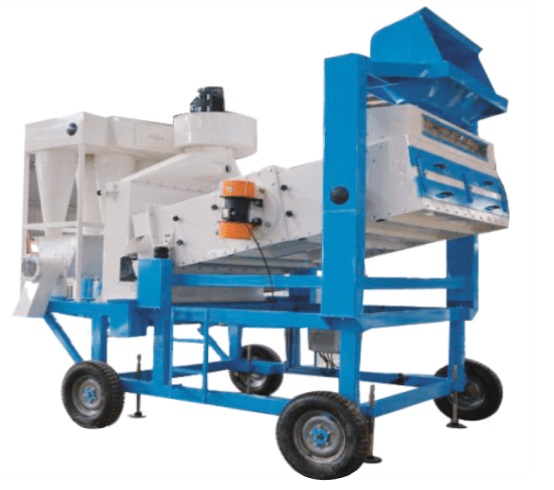

  • Portable setup option
Model Capacity (t/h)
Pre-cleaning
Capacity (t/h)
Cleaning
Power (kW) Weight (kg) Dimensions L×W×H (mm)
TQLZ 40×80
3
2
0.12 x 2
190
1,256×870×1,070
TQLZ 60×100
12
4
0.25 x 2
360
1,640×1,210×1,322
TQLZ 100×100
20
7
0.25 x 2
420
1,640×1,550×1,382
TQLZ 100×150
30
11
0.37 x 2
520
2,170×1,550×1,530
TQLZ 100×200
40
14
0.37 x 2
540
2,640×1,550×1,557
TQLZ 150×150
45
16
0.75 x 2
630
2,170×2,180×1,600
TQLZ 150×200
60
22
0.75 x 2
650
2,660×2,180×1,636
TQLZ 180×200
70
26
1.1 x 2
1,000
2,700×2,480×1,873
TQLZ 150×270
100
30
1.5 x 2
1,200
2,660×2,180×1,636
TQLZ 180×270
120
35
1.5 x 2
1,500
2,660×2,480×1,636
