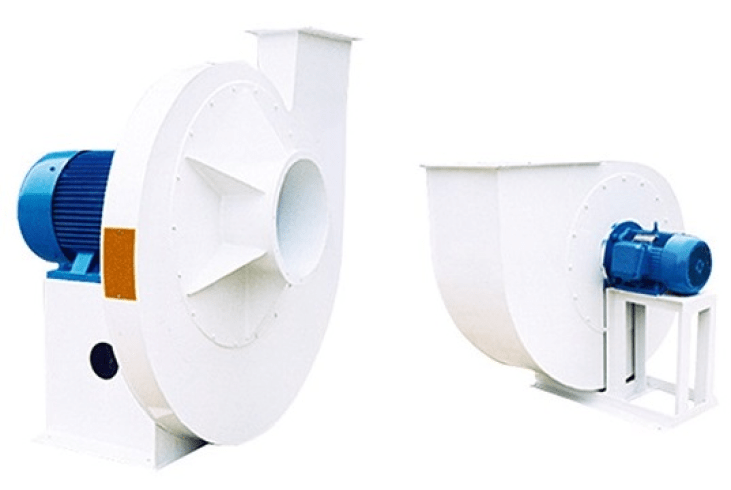

Application:  one of the key equipment for pneumatic conveying and dust collecting in the handling and processing systems.

Features:

  • Series models of blowers are available for a wide range of applications
  • Optimize design, high efficiency and low energy consumption
  • Dynamic balanced blower impellers to ensure smooth operation
  • Maintenance window for easy clean-out
  • Direct or belt drives are available
  • Variety of inlet/outlet arrangement
Model Air Volume (m³/h) Pressure (mm H₂O) Power (kW) Speed (rpm)
TY-GF7.7-1.5
14,620-7,840
1,018-1,064
45
2,970
TY-GF8.2-2
19,113-8,916
1,223-1,285
75
2,970
TY-GF8.4-2
20,813-11,755
1,115-1,238
75
2,970
Model Air Volume (m³/h) Pressure (mm H₂O) Power (kW) Speed (rpm)
6-30-#6
7,667-3,499
373-642
11-18.5
2,900-2,500
6-30-#7
12,385-8,607
‍342-904
11-37
2,950-2,500
9-19-5A
3,488-1,610
518-581
7.5-11
2,900
9-19-6.3A
6,078-3,220
831-933
18.5-30
2,900
T4-72-4A
7,160-3,800
112-208
5.5
2,900
T4-72-4.5A
10,700-5,820
167-264
7.5
2,900
T4-72-5A
14,710-8,010
210-340
11
2,900
T4-72-6A
22,180-9,828
215-410
22
2,900
T4-72-6C
4,000-20,426
30-281
1.5-15
900-2,240
T4-72-7C
6,261-24,038
38-213
3-18.5
900-1,800
T4-72-8C
9,631-36,234
61-325
4-30
900-1,800
